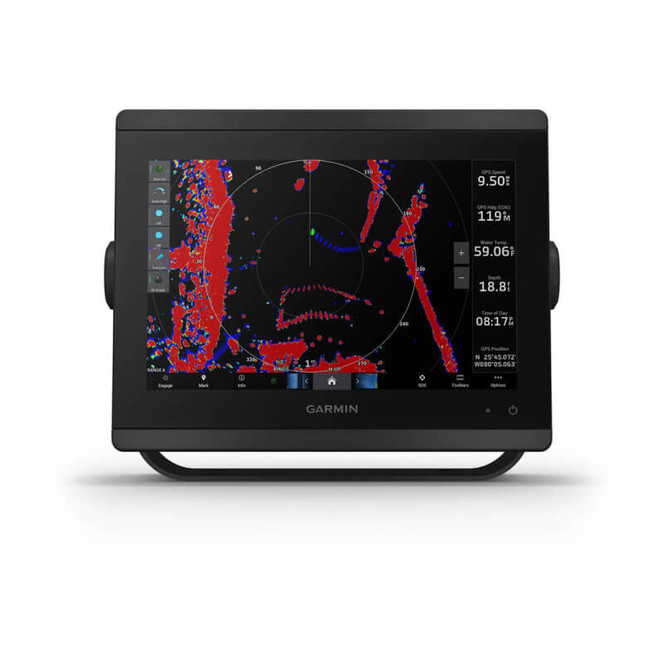

Garmin 8410xsv vs 8610xsv

Loads of people are asking the question - Should I update to a Garmin 8610xsv?

Well, here we will give you a comprehensive overview of the specifications - from people who have bitten the bullet, we gain some insight.  The 8610xsv is not Available in Australia however we stock the 8410xsv, 8412xsv and 8416xsv.

The Garmin 8610xsv is a 10" Chartplotter/Sonar Combo that is built around the brand-new Complete HD In-plane Switching (IPS) Touchscreen technology.

Its preloaded with both BlueChart ® g3 U.S. coastal and LakeVü g3 maps and also features Navionics ® data and also Auto Advice right out of the box. Similar to many Garmin MFDS, its fully network qualified with NMEA 2000 along with the Garmin Marine Network. Including more modules like panoptics, radar, auto-pilot, tools, video cameras along with multimedia is rather straightforward along with easy despite the fact that identifying what you wish to include could leave you stumped :(

It has integrated assistance for ANT ® innovation, Bluetooth and also Wi-Fi networking for connecting with added Garmin tools like a quatix ™ 5 marine smartwatch, VIRB activity cameras, or gWind Wireless 2 wind sensors.

Additionally included are SmartMode station controls a complete collection of Garmin sonar choices along with assistance for OneHelm. The all-in-one style removes the need for black-boxes, displays and external Wi-Fi antennas.

The ultra rapid cpu makes easy work of map illustration, running sonar, radar, cams, video along with electronic , with little or no hold-up. The screen can be split to show up to 6 various features concurrently, consisting of HDMI video input.

Couple the GPSMAP 8610xsv with the totally free ActiveCaptain mobile app for access to OneChart, wise alerts, trip planning, chart upgrades and also software program updates. I

We will give you a detailed overview at the 8610xvs functions. First and foremost lets take a wuick look on how the 8610 compares to the 7610xsv.  There are some essential distinctions, primarily in efficiency yet also in features and links.  We are a leading Garmin Marine Dealer Shipping Australia Wide.  For Product and Pricing info or Expert advice Contact us

Garmin 8410xsv vs 8610xsv

The only distinction between the 8410xsv and also the 8610xsv are the charts.

The 8610xsv comes preloaded with BlueChart g3 coastal and also LakeVü g3 inland mapping with Navionics data whereas 8410xsv only comes with a world base map.

Garmin 8610 vs 8610xsv

The only distinction between the 8610 and the 8610xsv is the sounder capability.

The 8610xsv has built-in assistance for dual-channel 1kW typical CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus integrated assistance for Ultra High-Definition scanning sonar. It additionally sustains the whole Panoptix all-seeing sonar.

The 8610 has all the same chartplotter functions however does not have sonar. Given that they can share sonar, if you have 2 systems just one requires to be the xsv version to make use of sonar on both.

Garmin 8610xsv vs 7610xsv

Outstanding Clarity along with Sunlight readability

This is definitely the first thing you notice with the 8610xvs. The new In-Plane (IPS) innovation made use of for the display offers really constant, precise shades that can be seen from all seeing angles, despite polarized sunglasses. IPS has been utilized on smartphones along with computer displays for several years, but Garmin is the initial to bring it to marine chartplotters in the GPSMap 8400 and 8600 Collection multifunction display screens. IPS changes the positioning of the display crystals so they are alongside the surface (or in plane) when invigorated which just makes for a far better customer along with checking out experience with a super-bright vibrant display when looking at it from basically any kind of angle.

Total Garmin Sonar Support

Integrated assistance for a bunch of Garmin sonar capabilities: Dual channel 1kW CHIRP traditional, ClearVu along with SideVu scanning sonars, Ultra-High Definition scanning sonar, the Panoptix LiveScope system along with the full line of Panoptix sonars. Support for the Panoptix ™ all-seeing sonar line features the added black box and also transducer.

1kW STANDARD CHIRP SONAR  Rather than sending out just 1 solitary frequency each time, Garmin CHIRP traditional sonar sends a continual sweep of regularities varying from low to high.

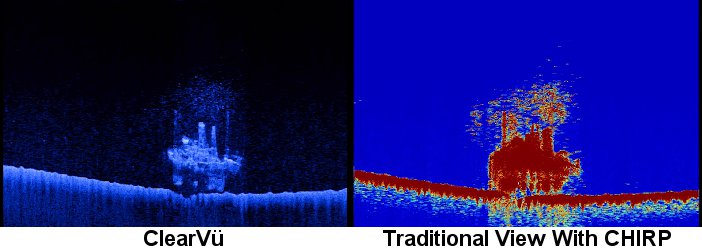

Garmin 8610xsv ClearVü vs CHIRP Traditional

The 8610xsv has a 1kW CHIRP sonar that sweeps a constant range of regularities, from reduced to high, in a solitary transmission. The returns from each regularity because transmission are after that analyzed to be drawn on the screen. Given that this continual sweep of frequencies gives CHIRP with a much wider series of info, CHIRP sonar has the ability to produce an extremely clear, high-resolution images.

You get far greater target separation and also even more specified arcs than you would with common 77/200 kHz sonar.

ClearVü SONAR- ClearVü scanning sonar is primarily made use of to recognize structure scanning sonar and offers you a virtually photographic image listed below the boat. With ClearVü, you plainly see structure, submerged things, along with fish.

Instead of a cone-shaped beam of light like typical CHIRP sonar, ClearVü scanning sonar sweeps a slim beam of extremely high-frequency (455 or 800kHz) from side to side, creating "slices" that are incorporated to produce extremely thorough pictures.

Fish are conveniently recognizable on Standard Sight with CHIRP where as Structures are well defined making use of ClearVü. See Image Above.

For anglers and also scuba divers searching for structure like accidents, coral reefs, log piles along with other undersea natural and man made fish attracting devices, ClearVü is a wonderful device.

Fish are easily recognizable on Traditional View with CHIRP where as Structures are well specified using ClearVü

SideVü SONAR-  SideVü is a high frequency sonar that offer you a lifelike view of structures and targets on the either side of the watercraft.

You see a crystal clear picture that makes it simple to determine wreckages, structure, rocks and also even fish that are stacked up beside or above them.

The range you can scan out to the side relies on the however can be useful out numerous hundred feet which is excellent for covering and searching lots of location rapidly.

On the GPSMAP 8610xsv you can view SideVü, ClearVü and Typical CHIRP sonar photos on the same split display.

Garmin GPSMAP 8610xsv - Split Screen Sonar Garmin GPSMAP 8610xsv|Split Screen Sonar

Ultra-High Definition scanning sonar- - is a brand-new modern technology that places even more power on the targets with a higher regularity range, for a much more clear photos, detail of structure along with fish listed below and out to the sides.

The detail of fish, rocks, brush piles, structure are significantly sharper with Ultra High-Definition ClearVü and also Ultra High-Definition SideVü sonar.

Garmin GPSMAP 8610xsv - Clearvu vs Ultra High-Definition Scanning Sonar

ClearVü vs Ultra High-Definition Scanning Sonar Garmin GPSMAP 8610xsv - Ultra High-Definition Scanning Sonar GPSMAP 8610xsv|

Ultra High-Definition Scanning Sonar Ultra-High Definition CHIRP regularities vary from 760-880kHz for ClearVü along with 1,060-1,170 kHz for SideVü and also are excellent for depths up to about 200 ′.

Optional Blackbox

Panoptix Livescope-- Panoptix all-seeing sonar is rather remarkable sonar modern technology. It gives us the capability to see throughout the watercraft in real time and also in 3 measurements.

Panoptix shows extremely detailed, easy-to interpret live scanning sonar pictures of structure, bait and fish swimming listed below and around your watercraft in real time, also when the watercraft is stationary.

Images are so clear, that Garmin states with a little technique, we might be able to identify types!

Both LiveScope Onward along with LiveScope Down modes are included in one transducer and also are available with either transom or trolling motor mounts for installation.

Panoptix Livescope Forward is trendy tool for hunting and also spying ahead of the watercraft. You get live, in-depth pictures of structure and also fish out to ready to 200 ′- also while the boat is siting in one area.

Panoptix LiveScope Down gives us live scanning sonar images of structure and also swimming fish in outstanding detail listed below the watercraft up to 200 ′ out from the transducer.

OneHelm ™|Control Whatever-- The OneHelm system coordinates full control of onboard systems-- such as electronic switching, lighting, stablizing and also more - comfortably on the 8610xsv display.

Garmin 8610xsv -Digital

Garmin 8610xsv- Digital Garmin 8610xsv - Digital Changing Food Selection Garmin 8610xsv- Digital Switching Over Menu

Below is a short list of included 3rd party systems. (For newest checklist- see Garmin OneHelm ™.)

Seakeeper: Stabilizers Solutions.

Victron Power : Circulation systems, batteries, chargers, inverters & system monitoring.

Scheiber : controls for lighting, air-conditioning, home heating, generators and storage tank monitiors.

GROCO ®: Water pumps, commodes and sanitation, raw water filters, fittings, warmth exchangers and also pumps. HP Watermakers: Automated watermakers.

Lumitec: LED lighting--underwater, courtesy, accent, dome, down, flooding, utility and also navigation.

Shadow-Caster: LED Illumination. Yacht Controller: cordless control for maneuvering, docking, anchoring.

Maretron: Digital power circulation. Programmable 12 or 16-channel DC tons components.

PowerPlex: Onboard and automation remedy for lighting, climate control, AC, pumps.

Quick ® Spa: Stabilizers, illumination, windlasses, securing, battery chargers, thrusters, docking along with water heaters.

Charts and also Mapping- The 8600 collection comes preloaded with the current BlueChart g3 coast cartography and also LakeVü g3 inland mapping including Navionics information for really in-depth, clear along with succinct charts and also maps. Upgading charts to BlueChart ® g3 Vision and also LakeVü g3 Ultra is easy with 2 microSD cards slots situated on the back of the tool.

BlueChart g3 coast cartography.

BlueChart g3 Detail - Automatic Guidance. BlueChart g3 Information--Automatic Support. Also included is Garmin's Auto Assistance technology, which reveals a suggested path to a destination, based on specs that you enter in the device like draft, and verticle height limitations.

Thorough Contours-1 ′ shapes that supply a more exact appearance of bottom structure for enhanced fishing charts and also improved information in swamps, canals and port formats.

BlueChart g3|Depth Range Shading. Charts display high-resolution Array Shielding for as much as 10 ranges, so you can see your needed at a glimpse by color.

Shallow water shading permits shielding at a user-defined depth to offer a clear image of superficial waters to prevent based on your own draft.

LakeVü g3 inland maps- coverage, exceptional quality along with detail with incorporated Garmin and Navionics ® content. The charts likewise let you conveniently calculate suggested routes with Auto Advice.

Garmin Quickdraw ™ Contours-- Quickdraw Contours instantaneously creates individualized HD maps with 1' contours and labels for any type of body of water as you fish.

When Quickdraw Contours documents information, a tinted circle borders the vessel icon. This circle stands for the approximate location of the map that is scanned by each pass.

Garmin Quickdraw Contours.

The maps are all your own-- customize them to fit your needs. Maintain the data on your own, or share maps with others in the QuickDraw Community.

ACTIVE Captain | Connected Boating Application -The totally free all-in-one ActiveCaptain app offers your 8610xsv an effective connection for upgrading charts, maps along with gain access to the Garmin community.

Wherever you are, you can have unrestricted accessibility to your cartography, purchase new maps along with charts, along with accessibility the Garmin Quickdraw ™ Contours Community.

Garmin GPSMAP 8610xsv

Active Captain Includes.

With OneChart ™ you have accessibility to all your charts and also maps from your mobile device.

Receive clever notifications, such as phone calls along with texts, on your screen when coupled with the application. Download and install software application updates and also alerts from the application straight to your Garmin devices.

Connect with other sailors for current comments on marinas and also other essential information.

Make, save and transfer courses and also waypoints between the app and also chartplotter.

Conveniently upload along with download and install the most recent Garmin Quickdraw ™ Contours material from the community.

See and control your chartplotter from your mobile phone or tablet computer.

Garmin SailAssist -Special preloaded sailing attributes such as laylines, boosted wind climbed, heading and also course-over-ground lines, true wind information fields and also tide/current/time slider. Garmin SailAssist. Garmin SailAssist. For sail auto racing, there are prerace assistance, integrated race timer, digital starting line, time to burn and lay line information fields.

Garmin 2019 | GPSMAP 8600- Brochure PDF.

Garmin GPSMAP 8600 - Pamphlet.

Rear Connections. Garmin 8610xsv -Back Connections.

2 microSD ports, 32 GB max.

NETWORK Garmin Marine Network.

HDMI HDMI in.

HDMI OUT HDMI out.

CVBS IN Composite video clip in. AUDIONMEA ® 0183 along with audio out.

POWER Power. USB

Touchscreen input from a computer system or other third-party gadget.

12-PIN XDCR12-pin transducer.

LVS XDCRLiveScope ™ single-array transducer. 8-PIN XDCR8-pin transducer.

NMEA 2000NMEA 2000 ® network. J1939J1939 network.

Facts  Garmin 8610xsv.

Efficiency.

10" Chartplotter | Sonar Combination.

Full HD In-plane (IPS) Touchscreen.

1920 x 1080 pixel WUXGA Shade Display.

Rapid High Performance Processor.

Wide seeing angle & outstanding clarity.

Outstanding exposure in straight sunshine.

Polarized sunglasses pleasant.

Internal antenna or external over NMEA 2000.

10 Hz Internal GPS/GLONASS/Galileo.

Mounts Placing|Bail, flat or flush.

Garmin Network Ports|2.

Wireless|Bluetooth|ANT.

Wi-Fi for- quatix 5|VIRB 360|gWind Wireless 2.

Supports GMR FANTOM ™ RADAR.

OneHelm- Integrated control of boat systems like lights, pumps, stabilizers & anything that can be electronically switched over.

NMEA 0183 in/out|NMEA 2000. Video clip In|1 BNC|1 HDMI.

Video clip Out|1 HDMI.

J1939 Compatible|Engine tracking.

Charting | Mapping.

BlueChart ® g3 US maps.

LakeVu g3 inland maps.

Navionics ® information & Automatic Assistance.

SmartMode ™ terminal controls-- display presets for one-touch accessibility to docking, cruising, angling & anchoring screens.

SailAssist- pre-race guidance, synchronized race timer, online beginning line, time to burn and also lay line data fields.

ActiveCaptain app for accessibility to- OneChart|Smart notifications2|Garmin Quickdraw Community data.

2 microSD flash memory card ports|32 GB max. 5,000 Waypoints. Track Log-

50,000 waypoints|50 conserved tracks.

100 Courses (250 waypoints each).

Sustains AIS|DCS|Fusion-Link.

Sustains spoken audio signals.

Fishfinder|Sounder.

Complete Built-in Sonar Capabilities.

Output Power|1kW traditional|1kW CHIRP.

CHIRP Traditional Sonar|50/200 - 77/200 - 83/200kHz.

Single Channel CHIRP|40-250kHz. T

win Channel CHIRP|40-250kHz.

SideVü|ClearVü CHIRP|260/455/800kHz. Outcome Power|500w.

Ultra High-Definition ClearVü|800kHz - CHIRP 760-880kHz.

Ultra High-Definition SideVü|1.2 MHz - CHIRP range 1,020-1,230 kHz.

Maximum -- 5000 ′.

Sonar capabilities are dependent on transducer.

Black Box sounder support if required.

Garmin GPSMap 8610xsv

Specifications

Version. GPSMAP 8610xsv.

Physical dimensions. 10.25" x 8.0625 "x 2.95". 25.9 cm x 20.5 cm x 7.5 cm.

Weight. 5.2 lbs.

Water score. IPX7.

Display type. WUXGA|IPS Touchsreen.

Display dimension. 8.6" x 5.4"; 10.1" angled. 21.8 cm x 13.7 cm; 25.7 cm diagonal.

Display resolution. 1920 x 1080 pixels.

Display - Illumination. Not Readily available.

Power usage. 2.7|10-32V.

GPS Antenna. Internal or outside NMEA_2000.

GPS Receiver. 10 Hz GPS/GLONASS/Galileo.

Placing choices. Bail, level or flush.

Maps & Memory.

Design. 8610xsv.

On-Board Memory. No.

Approves information cards. 2 Micro SD ™ cards.

Waypoints. 5,000.

Routes. 100.

Track log. 50,000 points; 50 saved tracks.

Preloaded Maps. BlueChart ® g3 and also LakeVü g3.

Exterior Recreation Functions. Trend Tables. Yes.

Chartplotter Features.

Model. 8610xsv.

Radar suitable. Yes.

Sonar suitable. Typical CHIRP:. Solitary Network CHIRP:. Dual Network CHIRP:. SideVü/ ClearVü: CHIRP. Ultra High-Definition ClearVü:. Ultra High-Definition SideVü:. Panoptix - With Black Box.

Sustains AIS. Yes.

Climate. SiriusXM.

Supports DSC - GPS Information/ VHF. Yes.

Supports FUSION-Link. FUSION-Link.

Black Box sonar assistance. Yes.

Preparation Software Program Compatible. No.

App-Control Compatibility. Active Captain.

Remote Input Device - compatible. GRID.

Alarms. Navigating. Anchor. Radar - when linked. Sonar - when linked. Weather condition - when linked.

Sonar Features & Specifications.

Design. 8610xsv.

Transmit Power. 1kW Typical|500W SideVü/ ClearVü.

Dual-frequency (50/200 kHz) sonar qualified. Yes.

Dual-Beam Sonar (77/200 kHz) qualified. Yes - 50/200|77/200|83/200.

CHIRP sonar innovation. Single CHIRP: 40-250|Double CHIRP: 40-250.

ClearVü|Down. ClearVü:|UHD ClearVü. SideVü|Side.

SideVü:|UHD SideVü:.

Forward View | Onward Sight. Yes|With Black Box.

Connections

Model. 8610xsv.

NMEA 2000 compatible. Yes.

NMEA 0183 input ports. 1 differential.

NMEA 0183 outcome ports. 1 differential.

Marine Network Ports. 2.

Video clip input ports. 1 - BNC composite|1 - HDMI.

Video clip outcome ports. 1 HDMI.

Wireless connection. Yes.

BlueTooth connectivity. Yes.

Other Ports. J1939 Compatible.

Extra.

Model . Garmin GPSmap 8610xsv.

Garmin GPSMap 8610xsv

1. Sailing Features. Additional

2. Sustains OneHelm. Extra

3. Sustains Smartmode monitor presets.

In Package. In The Box.

GPSMAP 8610xsv. Power cable. NMEA 2000 ®drop cable. NMEA 2000 T-connector. Bail mount with handles. Flush mount kit. Sunlight cover. Trim item snap covers. Documents
